Nelson Irrigation Australia

PGJ

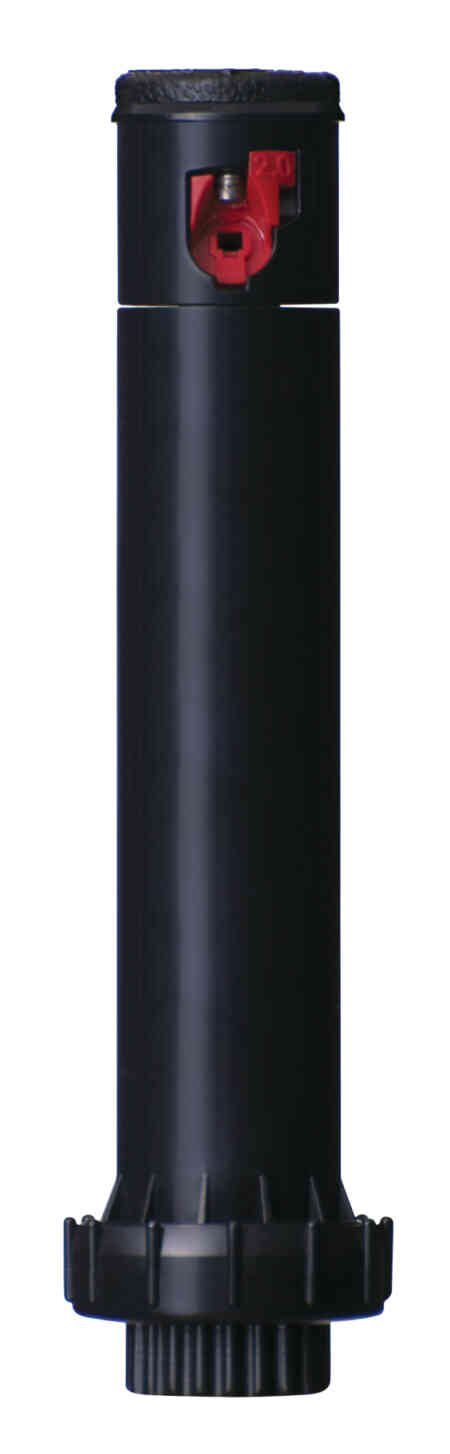

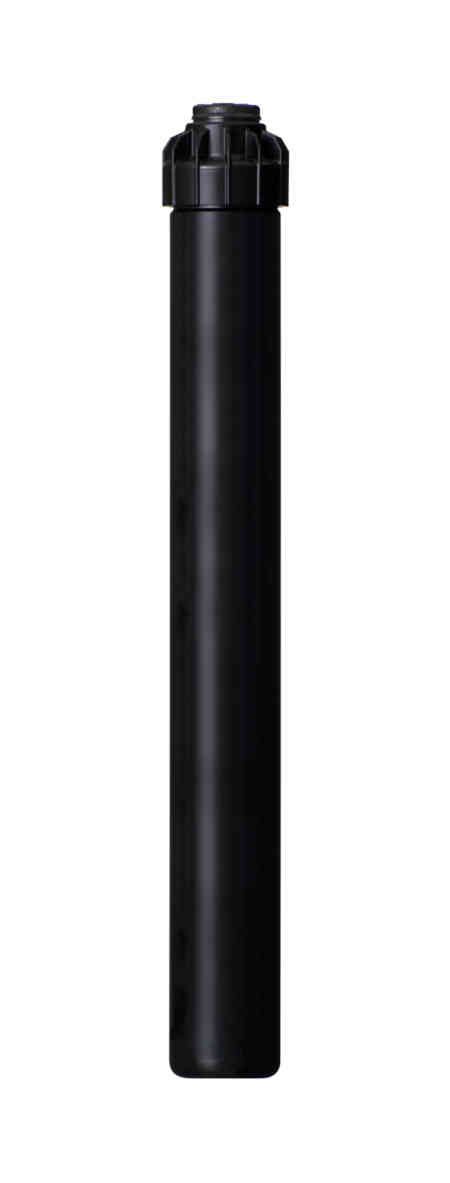

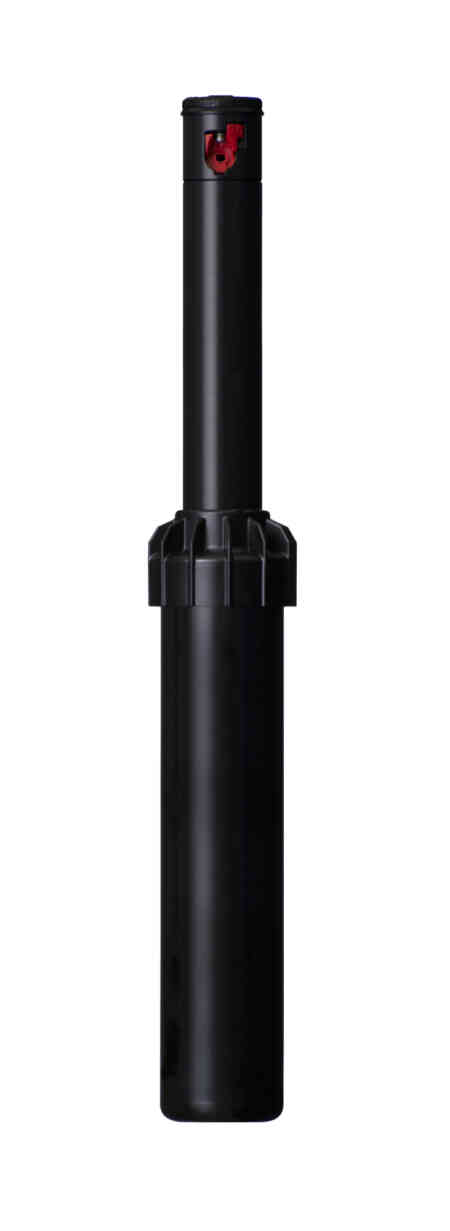

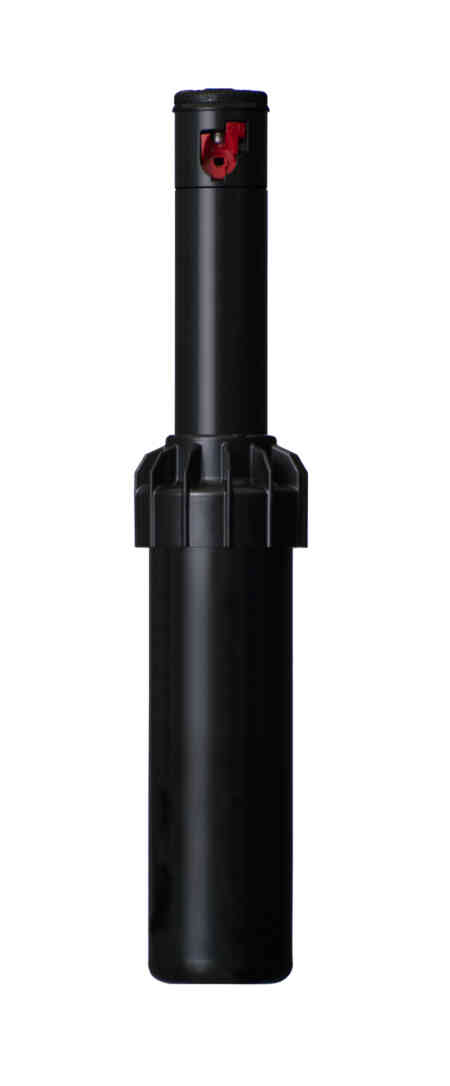

The highly durable PGJ offers all the benefits of a large rotor in a compact, spray-sized package, with water-efficient nozzles and easy arc adjustment.
The highly durable PGJ offers all the benefits of a large rotor in a compact, spray-sized package, with water-efficient nozzles and easy arc adjustment.

Specifications

  • Radius: 4.3 to 10.7 m
  • Flow: 0.08 to 1.00 m³/hr
  • Flow: 1.4 to 16.7 l/min
  • Inlet Size: ½"

Features

The PGJ was built to bring all the efficient benefits of rotary sprinklers to applications that typically call for a spray. Its many features include a rack of easily installable, water-efficient nozzles, a QuickCheckTM Arc Mechanism, and a durable rubber cover. The PGJ is capable of working in tandem with larger rotors to combine big and small areas in a single zone, offering a convenience and efficiency that sprays do not. When used in the right application, the PGJ allows fewer heads to perform more efficiently at a more economical price.

Key Benefits

  • Headed and slotted setscrew allows radius adjustment with a Hunter Wrench or flat-blade screwdriver
  • Adjustable arc from 40° to 360° to keep water in the appropriate areas
  • Standard factory-installed 2.0 nozzle speeds installation
  • QuickCheck™ Arc Mechanism for fast arc adjustment
