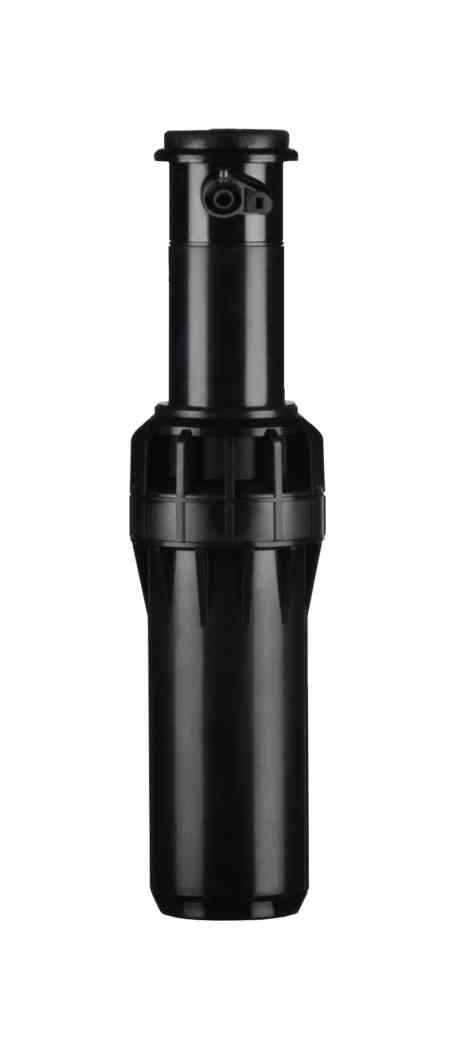

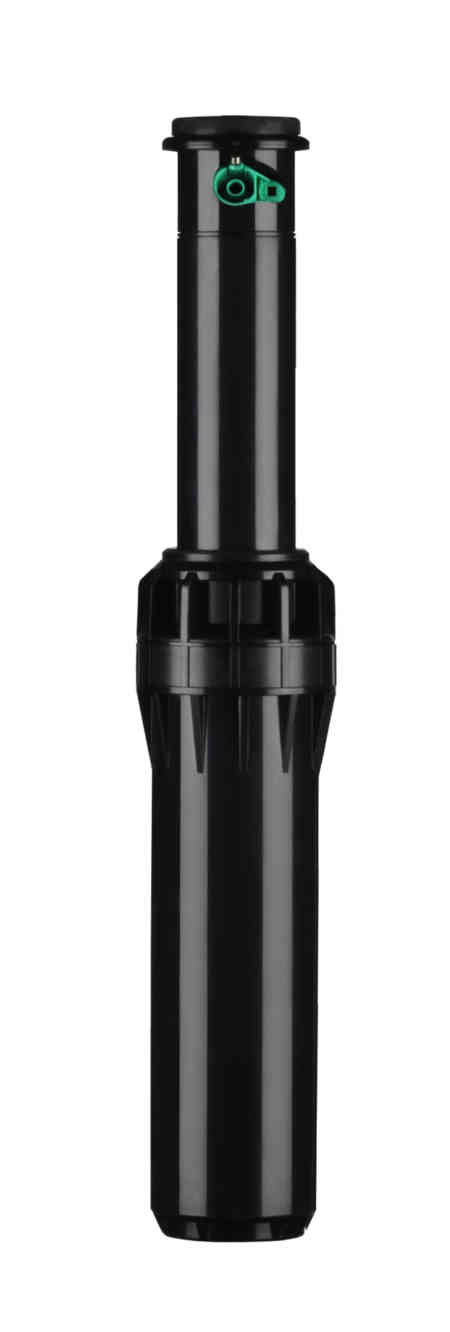

I-25

The reliable, durable, and versatile I-25 offers an expansive nozzle selection that makes it the perfect choice for large turf applications.
The reliable, durable, and versatile I-25 offers an expansive nozzle selection that makes it the perfect choice for large turf applications.

Specifications

  • Radius: 40' to 71'
  • Flow: 3.8 to 31.5 GPM
  • Flow: 13.6 to 120.7 l/min
  • Inlet Size: 1" NPT

Features

The I-25 gets the job done with power, efficiency, and commercial-grade reliability. With a robust watering radius of 11.9 to 21.6 m, this rotor can be used in a variety of applications and environments. Its compact, highly durable design comes with an optional stainless steel riser for tough-as-nails strength. With a 5-year warranty, the I-25 also has options for reclaimed water ID and high-speed. A standard check valve is built in, and a wide selection of high performance nozzles are available. Efficient, tough, and built-to-last, Hunterâs I-25 rotors work hard day in and day out so you don't have to.

Key Benefits

  • Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50° to 360°
  • Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
  • Part- and full-circle in one model for flexibility across landscapes and reduced inventory

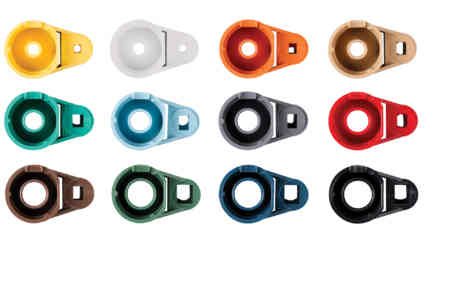

  • Colour-coded nozzles make identification easy
  • QuickCheck™ arc mechanism for fast arc adjustment

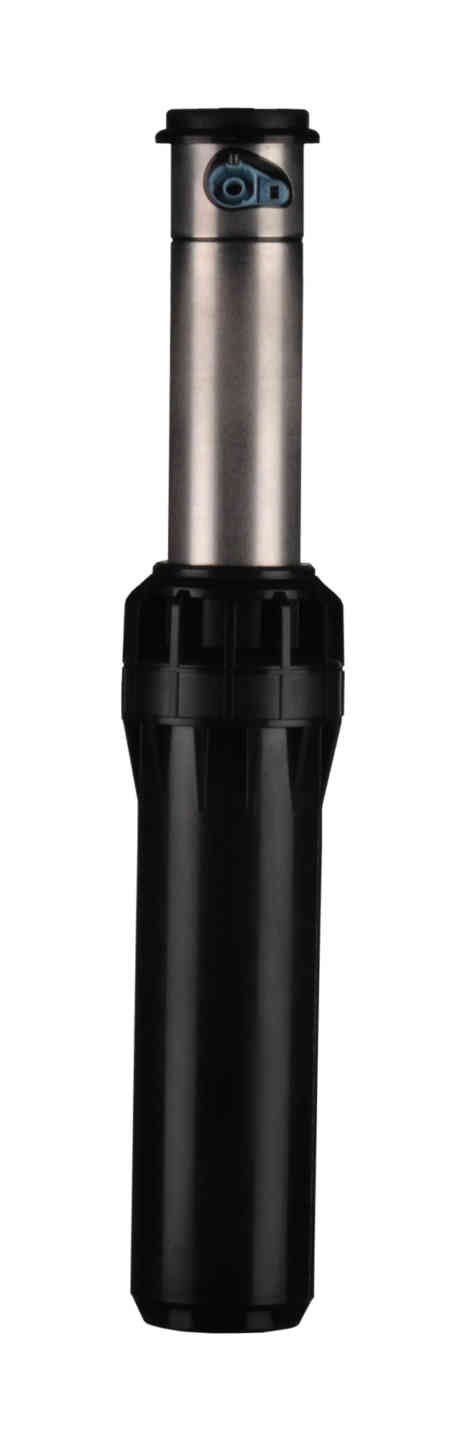

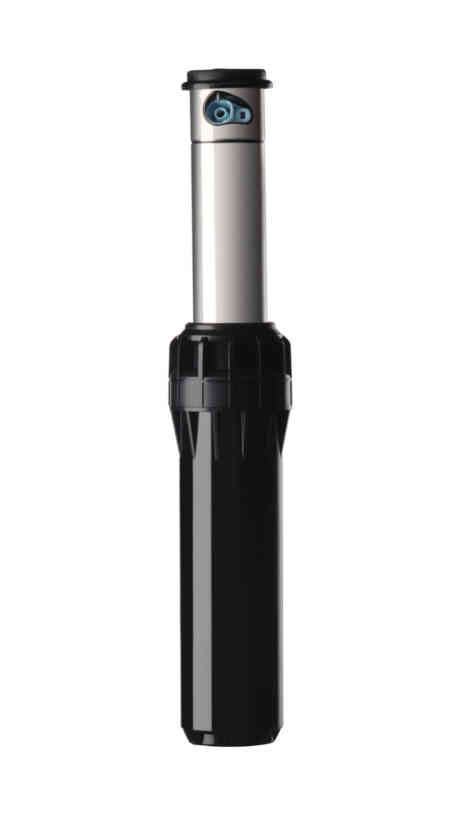

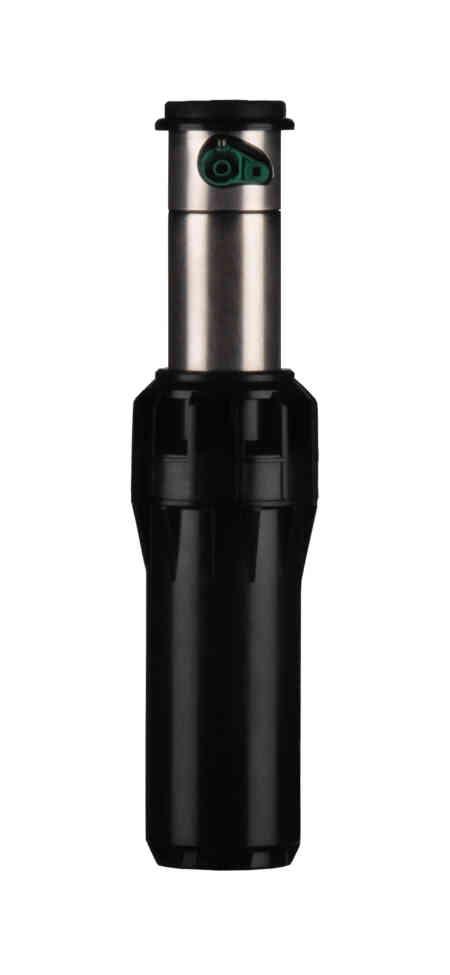

  • Available stainless steel riser for extra durability
  • Drain check valve prevents low-head drainage (up to 3 m of elevation)
