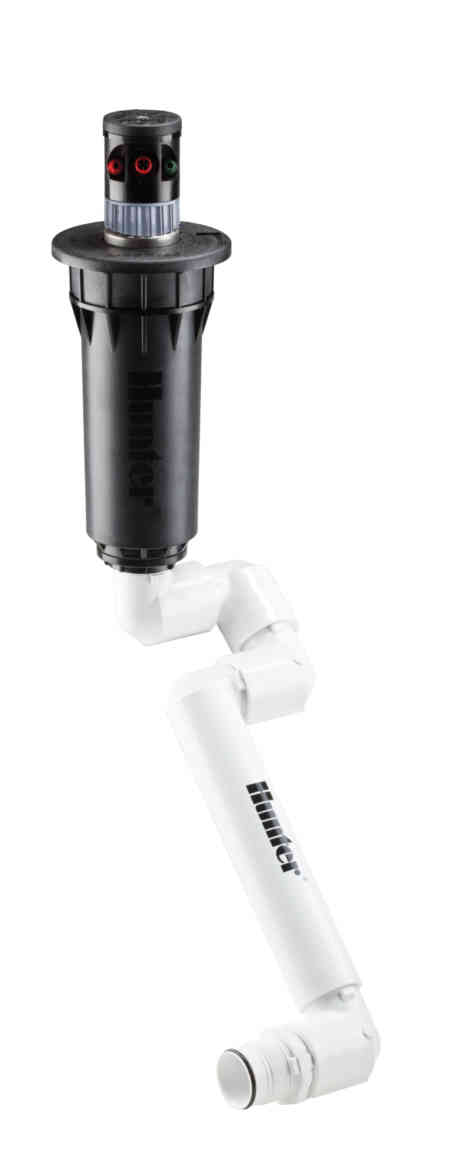

G-85-B

The Perfect Combination of Power and Performance
Golf Course

Specifications

  • Model: Full-Circle / Part-Circle
  • Radius: 11.3 to 28.7 m
  • Flow: 2.02 to 13.54 m³/hr; 33.7 to 225.6 l/min
  • Pressure: 3.4 to 6.9 bar; 340 to 690 kPa

Features

Boasting the highest torque output of any golf rotor on the market, the G-85’s patented gear drive will push through anything that gets in its way. Try it yourself and see. With just one rotation of the turret by hand, you can clearly feel this rotor’s formidable durability. With such a powerful core, an array of efficient nozzles, and true full circle and part circle capabilities, the new G-885 is the golf rotor you can always count on.

With a Block rotor design, the G-85 is a cost-competitive and highly reliable performer. It is the perfect choice for new construction, retrofit, and system upgrade situations that call for a Block rotor configuration.

Key Benefits

  • Full circle/Adjustable part circle (60° to 360°)
  • QuickCheck arc mechanism
  • QuickSet-360 arc mechanism
  • Exclusive PressurePort™ nozzle technology
  • Contour “Back-Nozzle” capabilities
  • Ratcheting stainless steel riser
  • Water lubricated gear-drive
  • Check height up to 2 m in elevation change
  • Dual trajectory color-coded nozzles: 12 standard trajectory (22.5°) and 9 low-angle trajectory (15°)
