Nelson Irrigation Australia

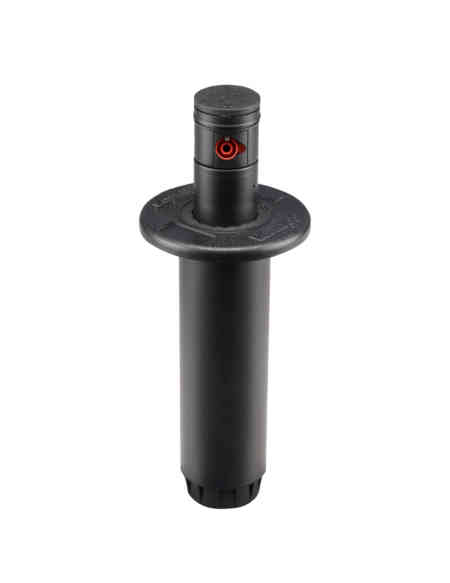

G-70-B

With a wide range of performance to choose from, the B Series rotors are easy on the budget
Golf Course

Specifications

  • Model: Full-Circle
  • Radius: 16.2 to 22.9 m
  • Flow: 2.95 to 7.66 m³/hr
  • Flow: 29.1 to 122.3 l/min
  • Pressure: 3.4 to 6.9 bar; 340 to 690 kPa
  • Pressure: 275 to 689 kPa

Features

Easy to adjust and maintain, Hunter's G-70 golf and large turf rotor is also the ideal choice for the customer on a budget. The B Series rotors provide all the standard features you want for mid-distance coverage including a time-tested gear drive, convenient through-the-top servicing, and a sturdy, impact-resistant flanged body. Plus Hunter's PressurePort™ nozzling system reduces velocity and pressure to the secondary nozzles while increasing droplet size. The result is they deliver uniform distribution every time.

Key Benefits

  • Full circle water lubricated gear-drive
  • Exclusive PressurePort™ technology delivers uniform and consistent coverage
  • Closed-case design helps prevent sticking riser and leaking seals

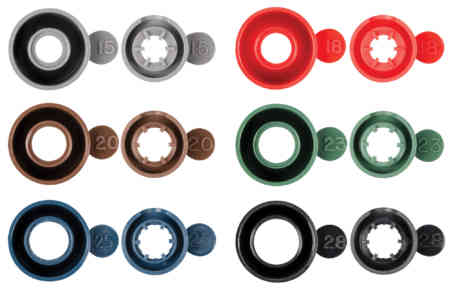

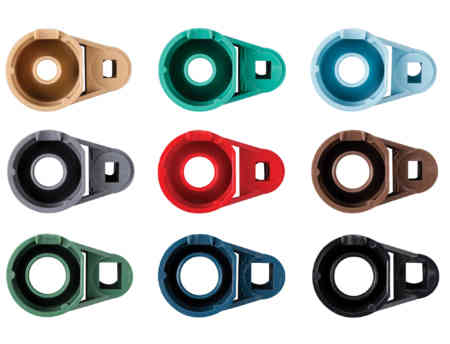

  • Flexible performance with 6 nozzles to choose from
